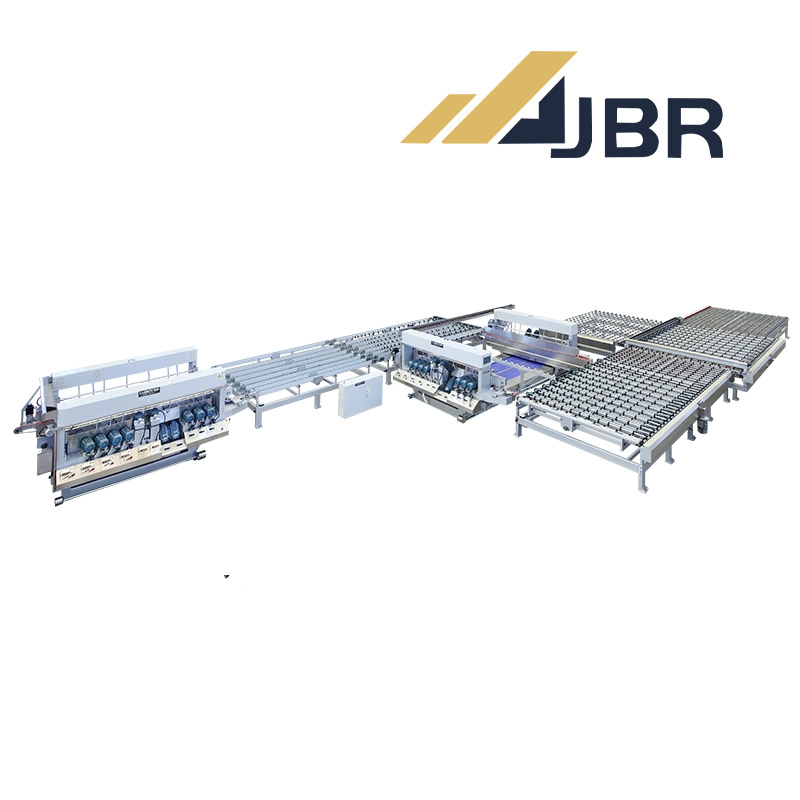

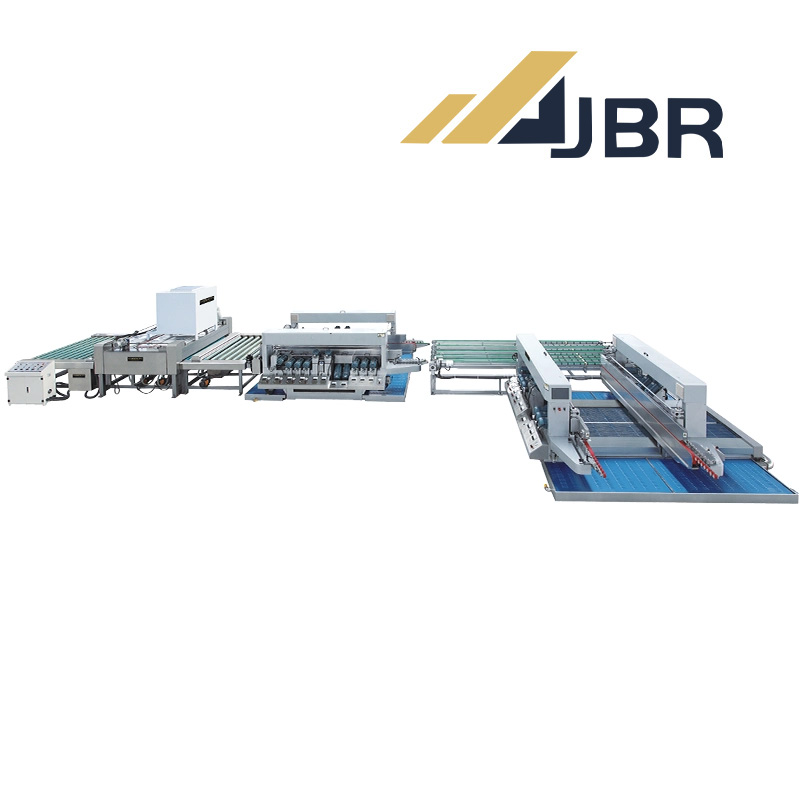

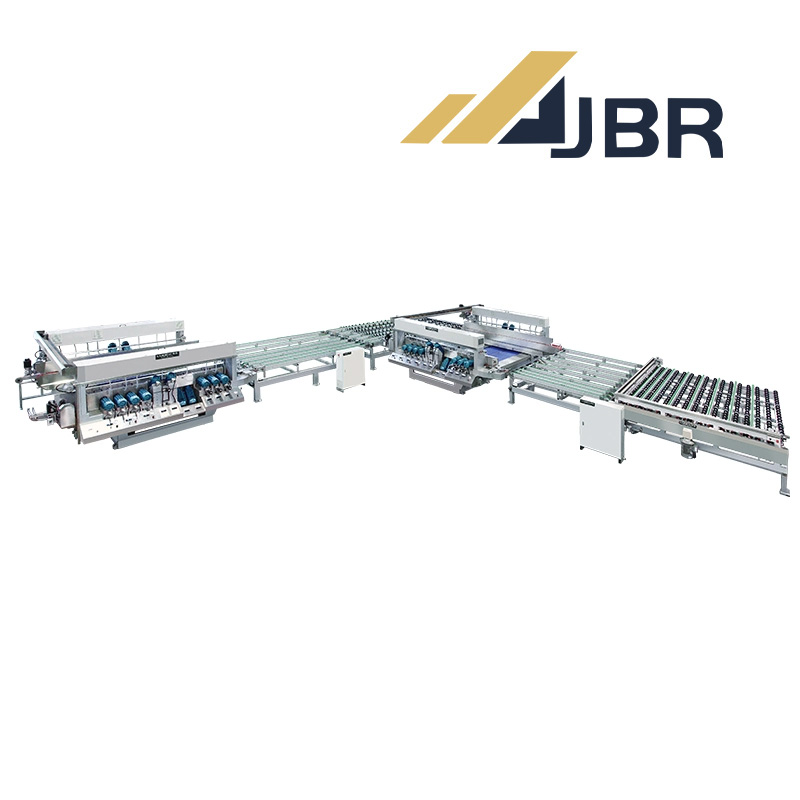

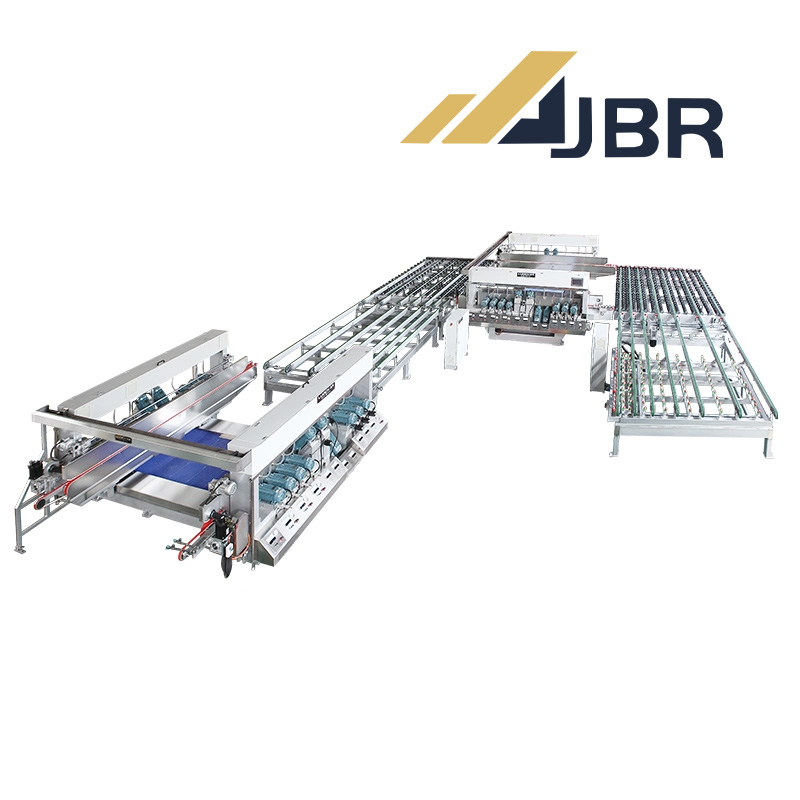

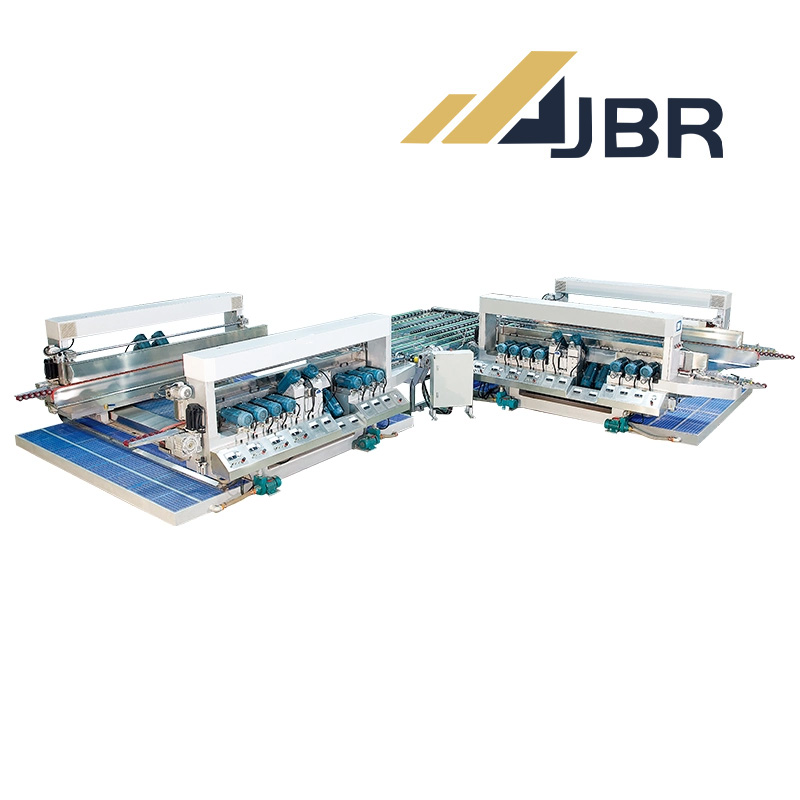

Full Automatic Glass Double Edger Machine Line with Automatic Measuring Table
Product ID : Fge-De5030
Product Attributes :
FGE-DE5030 Full Automatic Glass Double Edger Machine Line with Automatic Measuring Table
Product Description
Basic Info.
| Model NO. | FGE-DE5030 | Structure | Horizontal |
| Control System | PLC | Glass Edging Machine Type | Glass Double Edging Machine |
| Grinding Head Number | 10 | Condition | New |
| Glass Washing Machine Type | Customization | Transport Package | Iron Frame & Shrink Film |
| Specification | 2800*3200*2000mm | Origin | China |
| HS Code | 8464201 | Production Capacity | 20sets/Month |
FGE-DE5030 Full Automatic Glass Double Edger Machine Line with Automatic Measuring Table
1. DIFFERENT SIZE FOR OPTION
2.TECHNICAL INFORMATION:
3.GRINDING WHEEL CONFIGURATION:
4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
5. PACKING & LOADING PICTURES
Warmly welcome to visit, if there is any model you are interested, please feel free to contact.
Looking forward to cooperate with you and let's mutual benefit and win-win result.
1. DIFFERENT SIZE FOR OPTION
| MODLE | FGE-DE1500 | FGE-DE2000 | FGE-DE2500 | FGE-DE3000 | FGE-DE4200 | FGE-DE5000 | FGE-DE6000 |
| Maximum glass processing size |
1500mm | 2000mm | 2500mm | 3000mm | 4200mm | 5000mm | 6000mm |
| Minimum glass processing size |
250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
2.TECHNICAL INFORMATION:
| Glass processing thickness | 3-19mm |
| Glass Processing speed | 0-15m/min |
| Open and close speed | 0-15m/min |
| Diagonal tolerance of processing glass (mm) | (1m*1m) ±0.5mm/m |
| Parallel tolerance of processing glass(mm) | (1m*1m) ±0.1mm/m |
| Chamfer tolerance(mm) | <=0.3mm/m |
| Chamfer width(mm) | 1-3mm |
| Working table height | 870mm |
3.GRINDING WHEEL CONFIGURATION:
4.OPTION FUNCTION
OPTION A. Automatic compensation for diamond wheel
OPTION B. Automatic compensation and position locking for polishing wheel
OPTION C. Low-E coating removed device
OPTION D. Safety corner cutting device
5. PACKING & LOADING PICTURES
Warmly welcome to visit, if there is any model you are interested, please feel free to contact.
Looking forward to cooperate with you and let's mutual benefit and win-win result.
