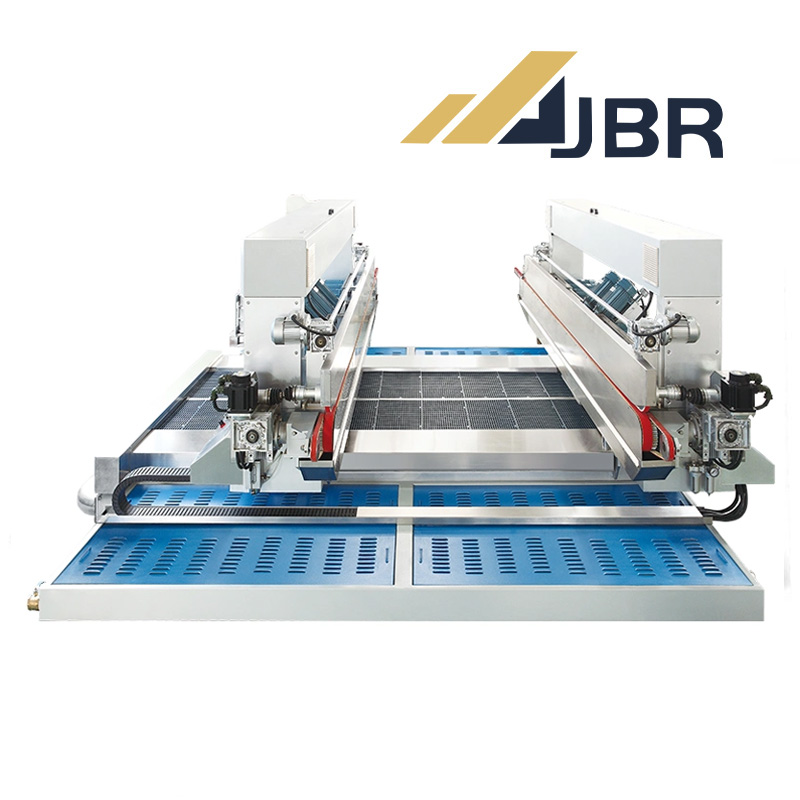

Glass Straight-Line Double Edger Production Line with L Shape Automatic Transfer Table
Product ID : Fge-De
Product Attributes :
FGE-HF2000 Glass Roller Seaming Machine
Product Description
Basic Info.
| Model NO. | Fge-De | Structure | Horizontal |
| Control System | PLC | Glass Edging Machine Type | Glass Straight Edging Machine |
| Condition | New | Grinding Head Number | 3 Spinles |
| Transport Package | Shrink Film | Specification | Width for 2000mm glass |
| Origin | China | HS Code | 8464201 |
| Production Capacity | 20set /Month |
FGE-HF2000 Glass Roller Seaming Machine
* Suitable for high-speed processing for hollow glass architectural glass, doors and windows glass, white glass and low-E glass. The machine use rubber rob wheel to press glass, transmission of fixed glass, processing and milling to avoid glass scratches and can effectively deal with Low-E glass in addition to film, edging processing problems.
*The machine adopts automatic interface operation, PLC control, intelligent fast response servo system, intelligent computer controls high speed, precision transmission glass transmission system; high speed grinding processing structure, shuttle angle processing speed of 35m/min, automatic identification of glass size. Accurate positioning, different specifications of the glass can be continuous on the film, without manual adjustment of the whole positioning, the entire process by the rubber stick pressure roller wheel position accurate, the product diagonal size is accurate, the control system has my diagnostic function, can master a variety of job information.
*The machine can be followed by automatic connection, automatic horizontal drilling machine, washing machine, steel furnace and other equipment composed of automatic glass processing production line, is the building hollow glass edging processing the strongest supporting equipment.
I.TECHNICAL PARAMETER
| Machine dimension | 6570*4443*1800mm |
| Grinding speed | 25-35m/min |
| Max processing sizes | 2000*3600mm |
| Min processing sizes | 300*650mm |
| Processing glass thickness dimensions | 4-12mm |
| Chamfer width | 45 degree |
| Worktable standard height | 900mm |
| Spindles | 3 pcs |
| Total power | 14.5 KW |
| Machine total weight | 5 tons |
II.WORKING CAPACITY
Single side arris |
Range of Chamfer Width(mm) | Grinding Speed (m/min) | Productivity for 1000*1000 size (pcs / hour) | Productivity for 2000*2000 size (pcs / hour) | Productivity for 1550*520 size (pcs / hour) |
| 0-2 | 25-35 | 180-200 | 160-180 | 170-190 |
