Structure Features

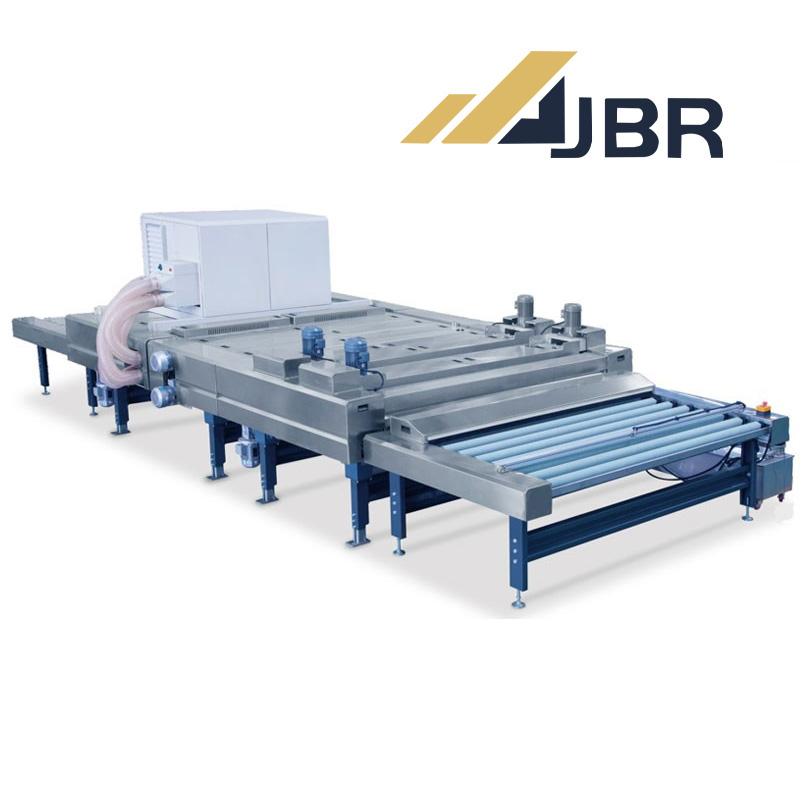

This model is for washing glass before mirror coating, coating and digital printing.

1.The machine structure is aluminum alloy assembled structure.Other structure parts are top- grade powder coated.

2. All transmitting rubber rollers of the machine are vulcanized rubber with SS304 shaft.

3. Washing section and other parts contacted with water are made of stainless steel material.

4.  Washing section and drying section can be lift up max.to 350mm as a whole, which is convenient to wash and maintain.

5. The machine has three pairs of brushes (φ160mm) with SS304 shaft

6. PLC control and touch screen display,

7. Has blower inverter and sensor and loading section which can delay machine stop.

Technical Parameters
